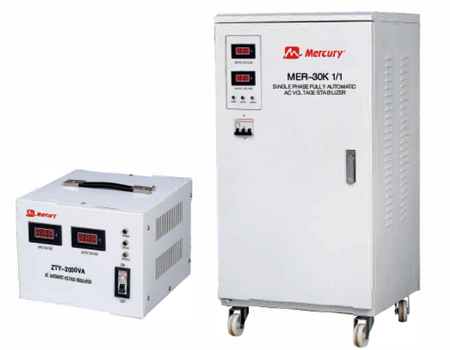

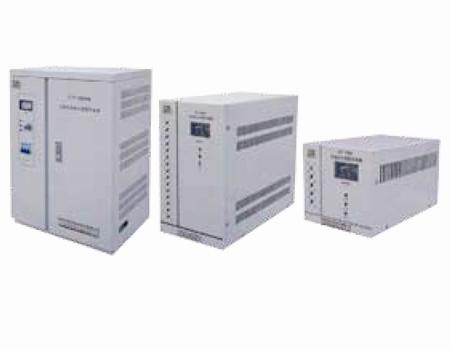

ZTY Single Phase
ZTY Single Phase
Specifications
When the utility is not stable or the load fluctuates, the Automatic Control Circuit modifies the Control Output according to the Output Voltage change of power supply, which is used to drive the Servo Motor, and then the Servo Motor adjusts the carbon brush of Auto-Transformer to maintain the Output Voltage at its rating and remain stable.
Input | : |
Voltage Range | 160~250VAC |
Phase | Single Phase+N+GND |
Power Factor | 0.6 |
Output | : |
Voltage | 220V |
Voltage Precision | ±3% |
Frequency | 50/60Hz |
Over-voltage Protection | Output Phase Voltage 250V±5V |
Low-voltage Protection | Output Phase Voltage 183V±5V |
Efficiency | 96.00% |
Display Model | LED Direction Light, Finger Voltage Diagram |
VA Rating | 0.5KVA / 1KVA / 2KVA / 3KVA / 5KVA / 10KVA / 15KVA / 20KVA / 30KVA |
Others | : |
Input/Output Device | Optional Plug |
Waveform Distortion | No Affixation Waveform Distortion |
Response Time | ±10% Varies <1s |
Insulation Resistance | 2MΩ |
Anti-electricy Intension | Low Frequency Sine Voltage 1500V Take 1 minute No Rout and Camber Phenomenon |
Ambient Temperature | 0ËšC ~ 40ËšC |
Relative Humidity | 95.00% |
Working | Continue |
Physical | : |
Dimension(DxWxH) mm | 0.5KVA / 1KVA 247×150×144 2KVA 247×150×200 3KVA 285×150×260 5KVA 360×175×305 10KVA 485×220×430 15KVA / 20KVA 370×330×612 30KVA 400×530×732 |
Measure(DxWxH) mm | 0.5KVA / 1KVA 360×235×235 2KVA 360×235×290 3KVA 395×230×350 5KVA 470×278×415 10KVA 555×280×495 15KVA / 20KVA 500×430×690 30KVA 500×635×830 |
Net Weight (kg) | 0.5KVA 4.3 1KVA 4.8 2KVA 8.2 3KVA 9.5 5KVA 15.2 10KVA 31 15KVA 53 20KVA 59 30KVA 91 |
Gross Weight (kg) | 0.5KVA 4.8 1KVA 5.3 2KVA 8.8 3KVA 10.1 5KVA 15.9 10KVA 32 15KVA 56 20KVA 61.3 30KVA 94.5 |
